Oilfield Well Drilling Rig Solid Control Mud Agitator 1000mm Impeller Diameter

  • 1
  • 2
  • 3

Brand Name : TR Solids Control

Model Number : TRJBQ18.5

Certification : API Certificate, ISO Certificate

Place of Origin : Xi'an,China

MOQ : 1 Pc

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 5000 Sets / Month

Delivery Time : 10 days after receiving deposit

Packaging Details : Wooden or iron pallet

Motor Power : 18.5kw

Impeller Speed : 60/72r/min

Impeller Diameter : 1000mm

Impeller Qty : 2pcs

Ex Standard : ExdIIBt4/IECEX/A-TEX

Dimension : 1510*890*753mm

Weight : 740kg

Key Words : High quality Mud Agitator for well drilling fluid mixing system, with excellent performance and long service time

Contact Now

Chinese Factory Supply Oilfield Well Drilling Rig Solid Control Mud Agitator

Main Introduction

Mud agitator is an ideal device for stirring, mixing liquid and preventing the solid-phase precipitation in the mixture. TR Solids Control is a professional manufacturer in mud agitator with competitive price and high efficiency. Our agitator is divided into horizontal mud agitator and vertical mud agitator. TR mud agitator has a variety of structure, it has small operating noise, long service life, less wearing parts, and cost-effective.The gearbox adopts worm gear, which makes it more reliable. Motor and gear box will be connected by coupling directly. Agitation speed is more stable. Shaft and blades are customizable. Welcome to contact us for an inquiry at any time.

TRJBQ series mud agitators are the mud mixers on circulating tank. Our agitators includes the horizontal and vertical type. That is meant by motor mounting direction. Nowadays, more and more users prefer the helical bevel geared agitator. This is because that the helical bevel gear box will be more stable and reliable than the helical worm and wheel gearbox.


Main Features of Drilling mud agitator:

  1. Small size, compact structure.
  2. Long lifespan, less wearing parts, and cost-effective.
  3. The gearbox adopt more reliable worm gear.
  4. Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
  5. Using high-pressure airless spraying equipment construction, after primer, intermediate coat, finishing coat and other processes to achieve beautiful appearance and antiseptic effect.
  6. Good heat exchange performance makes agitator faster cool down.​

Technical Parameters of Drilling Mud Agitator

Model Motor Power Impeller Speed Impeller Diameter Impeller Qty. Explosion-proof Standard Weight Dimension
TRJBQ3 3kw 60/72r/min 600mm 1

ExdIIBt4/IECEX/A-TEX

190kg 909×525×527mm
TRJBQ5.5 5.5kw 600mm 1 250kg 1072×610×588mm
TRJBQ7.5 7.5kw 650mm 2 380kg 1157×670×607mm
TRJBQ11 11kw 800mm 2 430kg 1297×740×692mm
TRJBQ15 15kw 950mm 2 480kg 1330×890×747mm
TRJBQ18.5 18.5kw 1000mm 2 740kg 1510×890×753mm
TRJBQ22 22kw 1100mm 2 780kg 1529×890×753mm
Remark Above weight and dimension exclude mud agitator shaft.

Oilfield Well Drilling Rig Solid Control Mud Agitator 1000mm Impeller Diameter

We are a professional manufacturer for soilds control equipments, we have designed lots of high-quality products, and TRJBQ series mud Agitator is one of them. To keep both the mud uniformity and the suspension of solids, the mud agitator is used to agitate the mud consecutively and reliably.This agitator agitates the mud to make cuttings, silt and sand pass the solids control system without being precipitated onto the tank bottom. Therefore, it is a reliable product in the solids control system. Welcome friends from all over the world to come to visit our factory and guidance our work.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.


Product Tags:

mud tank agitator



fluid mixing equipment


Quality Oilfield Well Drilling Rig Solid Control Mud Agitator 1000mm Impeller Diameter wholesale

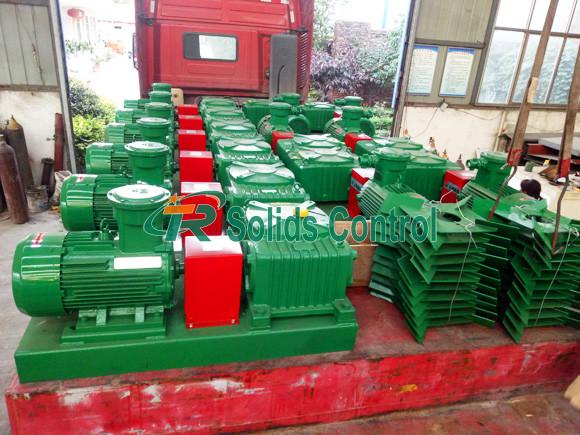

Oilfield Well Drilling Rig Solid Control Mud Agitator 1000mm Impeller Diameter Images
