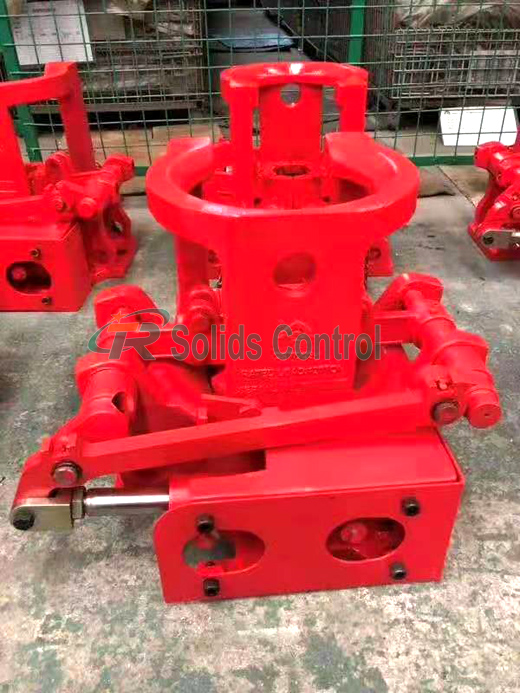

Oil Drilling Rig Equipment Pneumatic Spider Size 3 1/2"
Product Introduction
Pneumatic Spiders are utilized to grip drill pipes, tubing and casing in oil well drilling and repairing. They are designed and manufactured according to API Specification for drilling and well servicing equipment.
C, CHD E Type Pneumatic Spider
C, CHD, E Type Pneumatic spider is applicable for tubing, drill pipe, casing etc tubular during drilling or work over operation. API Spec.7K is performance standard for those pneumatic spiders.
QQP Type Pneumatic Spider
QQP type pneumatic spider is specially applicable for work over operation. Two spider models are available for different load requirements.
Our Service
1. For all your inquiries about our products, we will reply you in detail within 24 hours.
2. We have engineers who have more than 10 years’ experience to help you solve all the problems of technical.
3. We have a good translation, enthusiastic sales and service who can speak fluently in English and Russsain.
4. We guarantee and uphold the highest standards in customer service, client satisfaction, and quality product delivery in the oilfield industry.
Technical Data of Our Oilfield Pneumatic Spider
| Model | OD of the tubulars | specification of the slip bodies | Rated Capacity |
| C | 1.315-31/2 | 31/2 | 80tons |
| 31/2-41/2 | 41/2 |
| 43/4 | 43/4(Integral) |
| 5 | 5(Integral) |
| 51/2 | 51/2(Integral) |
| CHD | 1.315-31/2 | 31/2 | 120tons |
| 31/2-41/2 | 41/2 |
| 43/4 | 43/4(Integral) |
| 5 | 5(Integral) |
| 51/2 | 51/2(Integral) |
| HD | 1.315-31/2 | 31/2 | 125tons |
| 31/2-41/2 | 41/2 |
| 43/4 | 43/4(Integral) |
| 5 | 5(Integral) |
| 51/2 | 51/2(Integral) |
| E | 23/8-31/2 | 31/2 | 175tons |
| 4-51/2 | 51/2 |
| 51/2-7 | 7 |
| 75/8 | 75/8 (Integral) |
| Model | Max load tons (kN) | Contact pipe size mm(in) |
| QQP/585 | 60585 | 60.3-88.92 3/8-3 1/2 |
| QQP/675 | 759675 | 60.3-88.92 3/8-3 1/2 |
| QQP/900 | 100900 | 60.3-127(2 3/8-5) |
| C Type | 80 | 2 3/8-4 1/2 |
| CHD Type | 120 | 2 3/8-4 1/2 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited follows the principle of "quality first, science and technology innovated, people oriented", it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).
Currently, our products is already exported to America, Middle East, Australia,Africa and 20 other countries and regions. Our company has always focused on research, development and innovation. We will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
