Forged EE PR2 H2 Type Manual Choke Valve For Wellhead

API 6A H2 Type Manual Choke Valve for Wellhead

Product Introduction

The choke valve, a main Description of Christmas tree, is design to control production rate of the oil well, with working pressure up to 10000psi. Choke valves can be classified as follows: Adjustable choke valves and positive choke valves.

Valve body is machined of alloy steel forging with astronger machinery properties and reliable performance.
Bonnet is connected with valve body with bolt, theseals include the sealing ring in the bonnet and the sealin the valve body;
The sealing face between valve core and valve bodyis welded with hard alloy with good abrasion resistanceand anti-scour; the valve core is made of sulfide-resistance steel and the others adopt the process of hard-ness limit so the valve is able to be used in H2S condition.

The hydraulic choke valve is employed on manifolds and other assemblies and designed for flow control. In order to control flow rate, the hydraulic choke valve uses the valve core which can be lifed and lowered to adjust the effective area available.

How to maintain the choke valve?

• When the product is stored, the end flanges shouldbe coated by oil against rust and dirt pollution.
• Every seal element is replaced according to itsexamination.
• As leak appears at the middle one of the valvebores, ring gasket should be replacedThe valve should be placed in the dry and airy room,and the inlet and outlet are sealed properly.
• There is a bit leak at a couple of seals of valve, andthe sealing-face may have scratch or wear. Renovationwill be done under face-off and ground finish.
• The valve-core and the valve-seat must be exam-ined every in a well time. The attrition rate will decidewhether they are used by upset or are replaced.

Operation instruction

According to medium flow direction and by the flowdirection indicating plate of the valve, the valve isinstalled. As positive flowing, The medium lifts the valvecore and pass easily; If no positive medium pressure,valve core will self-shut off valve gate under self-weightand spring's tensile force, the back medium flowing stop.

Technical Data of Oilfield Choke Valve

​

Xi'An TianRui Petroleum Machinery Equipment Company Limited has specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipments. Main products include : Petroleum equipments & tools such as drilling equipments, oil production equipments, oil pipes, wellhead equipments, downhole tools, well control equipments, cementing tools ,and petrochemicals etc.

Our products Including below four series with full model types:
Solid Control: mud cleaner, shale shaker, decanter centrifuge, mud agitator;
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

H2 Type Manual Choke Valve

Wellhead Manual Choke Valve

PR2 Manual Choke Valve

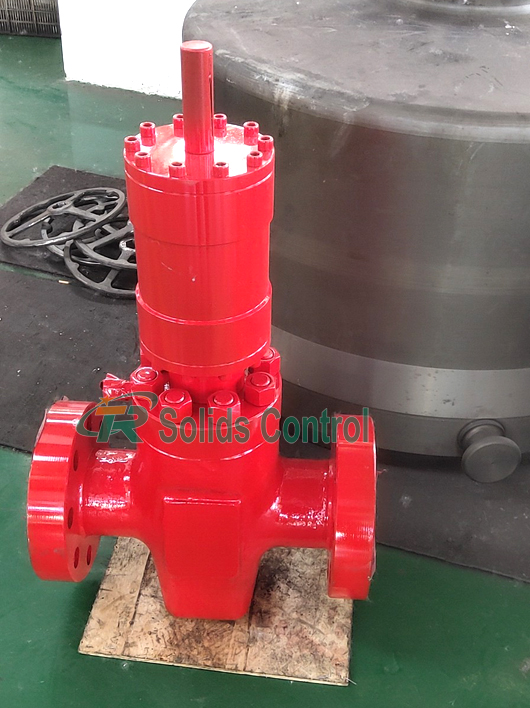

Forged EE PR2 H2 Type Manual Choke Valve For Wellhead Images
