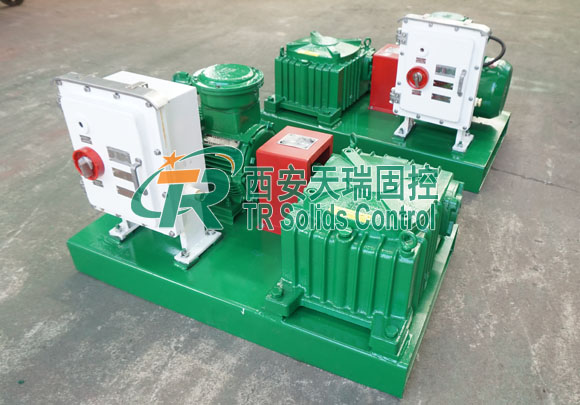

Oilfield Petroleum Well Drilling Rig Mud Tank Mixing Equipment Mud Agitator
Product Introduction
Mud agitator is part of the drilling fluids solids control equipment, which is mainly used to agitate and mix the drilling mud to prevent solids particles from depositing in the circulating tank and to stabilize the performance of drilling fluids. The motor and speed reducer, speed reducer and impeller shaft are connected by steel coupling.
Drilling cuttings are a major component of the harmful solid phase. To remove the harmful solid phase, they must be suspended, and then injected into the desander, desilter and centrifuge can be achieved. Useful solid phases, such as various aggravating materials (hematite powder, barite powder) and small amount of bentonite, they also need to be suspended evenly to keep stable density and other properties of the drilling fluid. Therefore, mud agitator is required to reliably and continuously operate to avoid precipitation of the solid phase.
Characterstics of TRJBQ series drilling mud agitator:
- Good heat exchange performance makes agitator faster cool down.
- Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
- The gearbox adopt more reliable worm gear.
- Small size, compact structure.
- Long lifespan, less wearing parts, and cost-effective.
- Using high-pressure airless spraying equipment construction, after primer, intermediate coat, finishing coat and other processes to achieve beautiful appearance and antiseptic effect.
Specifications of Mud Agitator:
| Model | Motor Power | Impeller Speed | Impeller Diameter | Impeller Qty. | Explosion-proof Standard | Weight | Dimension |
| TRJBQ3 | 3kw | 60/72r/min | 600mm | 1 | ExdIIBt4/IECEX/A-TEX | 190kg | 909×525×527mm |
| TRJBQ5.5 | 5.5kw | 600mm | 1 | 250kg | 1072×610×588mm |
| TRJBQ7.5 | 7.5kw | 650mm | 2 | 380kg | 1157×670×607mm |
| TRJBQ11 | 11kw | 800mm | 2 | 430kg | 1297×740×692mm |
| TRJBQ15 | 15kw | 950mm | 2 | 480kg | 1330×890×747mm |
| TRJBQ18.5 | 18.5kw | 1000mm | 2 | 740kg | 1510×890×753mm |
| TRJBQ22 | 22kw | 1100mm | 2 | 780kg | 1529×890×753mm |
| Remark | Above weight and dimension exclude mud agitator shaft. |
Our drilling mud agitator has reasonable price and superior quality. Besides, our shale shaker, mud cleaner, vacuum degasser, centrifugal pump and shaker screens are popular among clients. TR Solids Control is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices. Welcome friends from all over the world to come to visit our factory and guidance our work.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
