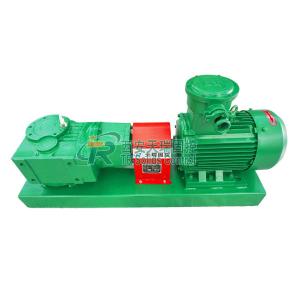

Oil and Gas Drilling Mud Agitator / Small Footprint Without Skid Mud Mixer Machine
Product Introduction
Mud agitator is an essential solids control equipment in drilling mud circulating tank. It can prevent sedimentation of important media such as muddy barite, thus reducing the storage of mud volume. With the development of drilling industry, customers are now attaching great importance to the quality of solids control equipment. We TR Solids Control designs the latest type mud agitator according to clients’ requirements. Compared with old type mud agitator, new agitator has greater transmission strength in worm gear reducer. And it has long service life, and small floor space.
In order to keep the uniformity of drilling fluid and to suspend the solid particles, it is necessary to set up mud agitator on the circulating tank. Stirring plays a very important role in accelerating the reaction, dissolution and wetting of drilling fluids (eg. bentonite, barite) and chemical additives. Stirring increases the contact area between the phases, and allows the two phases to interact with each other at a greater speed.
Main benefits of TRJBQ series mud agitator
- Explosion-proof electric motor.
- The gearbox use worm gear. More reliable.
- Optimized product structure, small size.
- Less wearing parts, and cost-saving.
- High efficiency and low operating temperature.
- Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
- Good heat exchange performance makes agitator faster cool down.
Technical Data of TRJBQ Series Mud Agitator
| Model | Motor Power | Impeller Speed | Impeller Diameter | Impeller Qty. | Explosion-proof Standard | Weight | Dimension |
| TRJBQ3 | 3kw | 60/72r/min | 600mm | 1 | ExdIIBt4/IECEX/A-TEX | 190kg | 909×525×527mm |
| TRJBQ5.5 | 5.5kw | 600mm | 1 | 250kg | 1072×610×588mm |
| TRJBQ7.5 | 7.5kw | 650mm | 2 | 380kg | 1157×670×607mm |
| TRJBQ11 | 11kw | 800mm | 2 | 430kg | 1297×740×692mm |
| TRJBQ15 | 15kw | 950mm | 2 | 480kg | 1330×890×747mm |
| TRJBQ18.5 | 18.5kw | 1000mm | 2 | 740kg | 1510×890×753mm |
| TRJBQ22 | 22kw | 1100mm | 2 | 780kg | 1529×890×753mm |
| Remark | Above weight and dimension exclude mud agitator shaft. |
Product Application
TRJBQ series mud agitator is currently used in trenchless HDD, city bored piling, oil & gas drilling, Drilling Waste Management, Coal Bed Gas Solids Control System, micro-tunneling, mining, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
Product Tags:
|
|

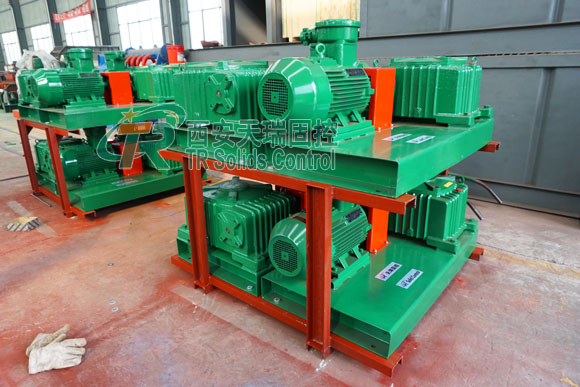

Oil and Gas Drilling Mud Agitator / Small Footprint Without Skid Mud Mixer Machine Images
|
