3KW Compact Structure Drilling Mud Agitator for Mud Recovery System
Introduction
Drilling mud agitator is used in surface mud systems to suspend solids and maintain homogeneous mixture throughout the system. A mechanical agitator is driven by an explosion-proof motor, coupled to a gear box that drives the impeller shaft. The impellers (turbines) transform mechanical power into fluid circulation or agitation. The objective is to obtain a uniform suspension of all solids.
TRJBQ series mud agitator is easy to maintain, and suitable for use in the field of harsh working conditions. It has a large agitation strength, wide spread, and can reduce starting torque. Our mud agitator is widely used in oil drilling, natural gas drilling, shield construction, city bored piled and other non-excavation site mud mixing, etc.
Main benefits of TRJBQ series mud agitator
- Good heat exchange performance makes agitator faster cool down.
- Optimized product structure, small size, compact structure.
- Running smoothly, small operating noise, long usage life, less wearing parts, and cost-saving.
- Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
- The gearbox use worm gear. More reliable.
- Power available ranging from 3 to 22KW.
Technical Data of TRJBQ Series Mud Agitator
| Model | Motor Power | Impeller Speed | Impeller Diameter | Impeller Qty. | Explosion-proof Standard | Weight | Dimension |
| TRJBQ3 | 3kw | 60/72r/min | 600mm | 1 | ExdIIBt4/IECEX/A-TEX | 190kg | 909×525×527mm |
| TRJBQ5.5 | 5.5kw | 600mm | 1 | 250kg | 1072×610×588mm |
| TRJBQ7.5 | 7.5kw | 650mm | 2 | 380kg | 1157×670×607mm |
| TRJBQ11 | 11kw | 800mm | 2 | 430kg | 1297×740×692mm |
| TRJBQ15 | 15kw | 950mm | 2 | 480kg | 1330×890×747mm |
| TRJBQ18.5 | 18.5kw | 1000mm | 2 | 740kg | 1510×890×753mm |
| TRJBQ22 | 22kw | 1100mm | 2 | 780kg | 1529×890×753mm |
| Remark | Above weight and dimension exclude mud agitator shaft. |
Application in Drilling Solids control
TRJBQ series mud agitator is currently used in oil & gas drilling, city bored piling, Drilling Waste Management,tunneling construction, environment protection, Coal Bed Gas Solids Control System, trenchless HDD, micro-tunneling, mining, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
Product Tags:
|
|

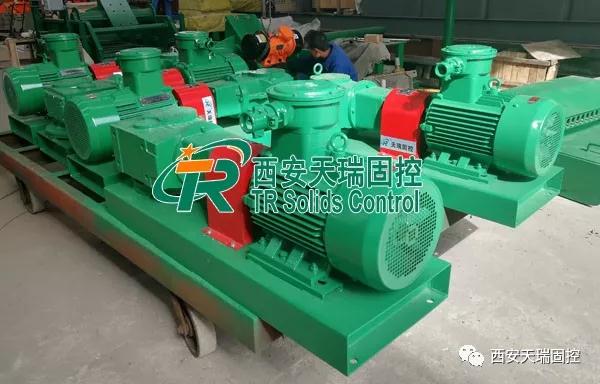

3KW Compact Structure Drilling Mud Agitator for Mud Recovery System Images
|
